SmallRig 3203 Overview

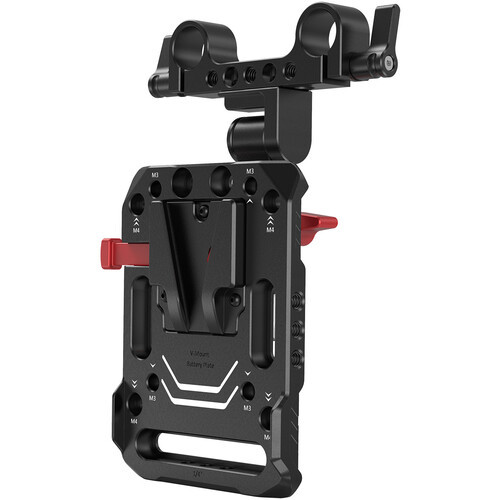

Power your camera and a variety of accessories from a single high-capacity V-mount battery with SmallRig's V-Mount Battery Adapter Plate with Dual 15mm Rod Clamp, which adds USB-C I/O with up to 65W of output and a QC protocol compatible USB-A port that can supply up to 36W of power. The battery plate provides a V-mount for a single battery and one 14.8V D-Tap output rated at 5A of current or up to 10A max when connected to a power supply. Additionally, the battery plate features three barrel outputs—one 8V and two 12V outputs at 3A on the side of the plate to supply power to all your accessories.
The aluminum plate features six 1/4"-20 and ten M4 threaded holes on the back to mount it onto arms, cages, clamps, or rigs. An additional five 1/4"-20 threads occupy the top and bottom for further mounting options. The 15mm LWS rod clamp allows you to mount and release the plate quickly from standard, separately available 15mm LWS rods with locking levers. The plate also features a power button on the side and a power indicator light that changes color depending on whether it is fast charging or discharging. The power indicator light also flashes when exceeding its operating temperature of 150°F to ensure longevity.
Compatibility
- 3500-20000mAh 14.8V V-mount batteries (except for PAGlink series V-mount batteries and Patona Premium Battery for BP-190WS)
- 16.8V max and 11V cutoff operating voltage
- Standard 15mm LWS rods
- D-Tap input and USB-C input/output available after powering off
- D-Tap, USB-A, and DC output are unavailable after powering off
USB-C: VDC
DC Jack: 8 VDC at 3 A
DC Jack: 12 VDC at 3 A
DC Jack: 12 VDC at 3 A
USB-C: VDC
USB-A: 12 VDC at 3 A
3x DC Jack
1x USB-C
1x USB-A
- SmallRig V-Mount Battery Adapter Plate with Dual 15mm Rod Clamp
- SmallRig 942 Super Lightweight 15mm LWS Rod Bracket v3
- 4 x Mounting Screw
- Allen Key
- Limited 1-Year Manufacturer Warranty (Electronc)
