Description

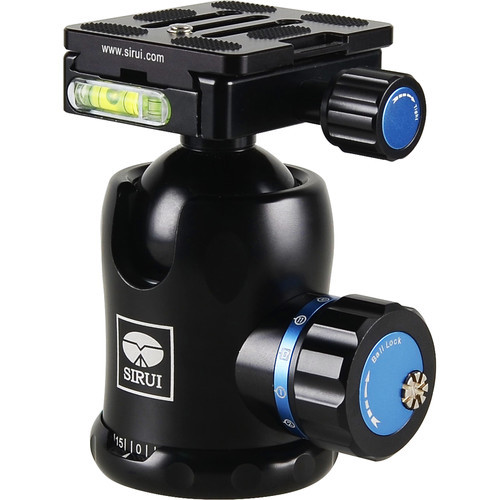

Sirui K-10II Friction Control Ball Head
This CNC-machined K-10II Ball Head from Sirui is Arca-type compatible, and it includes a quick release plate with a threaded 1/4"-20 camera mount. Safety stops located on the bottom of the plate prevent it from sliding out if the clamp is partially opened. The head's load capacity is 44.1 lb, its weight is 14.1 oz, and it is 3.8" tall. The main aluminum locking knob disengages, and it allows you to move the ball and place it at a 90° angle; the independent pan knob also unlocks, so you can rotate the head a full 360°. Tension can be increased or decreased to the main ball with its control dial located on the inside of the main knob. The three spirit levels ensure that your horizon is straight at each axis.
Features:
- Load Capacity: 44.1 lb
- Height: 3.8"
- Weight: 14.1 oz
- Arca-Type Compatible
- 90° Vertical Tilt
- 360° Pan with Independent Pan Lock
- Tension Control
- CNC-Machined Aluminum Construction
- Horizontal and Vertical Spirit Levels
- Includes QR Plate with 1/4"-20 Mount
Specifications
- General
- Head Type:
- Ball Head
- Base Mount:
- 3/8"-16 Female
- Camera Mounting Screw:
- 1/4"-20 Male
- Quick Release Plate Type:
- Arca-Type
- Load Capacity:
- 44.09 lb / 20 kg
- Number of Bubble Levels:
- 3
- Friction Control:
- Yes
- Independent Pan Lock:
- Yes
- Material:
- Aluminum
- Pan & Tilt Range
- Vertical Tilt:
- 90°
- Panning Range:
- 360°
- Physical
- Ball Sphere Diameter:
- 1.30" / 33 mm
- Dimensions:
- H: 3.8" / H: 96.0 mm
- Weight:
- 14.11 oz / 0.4 kg
